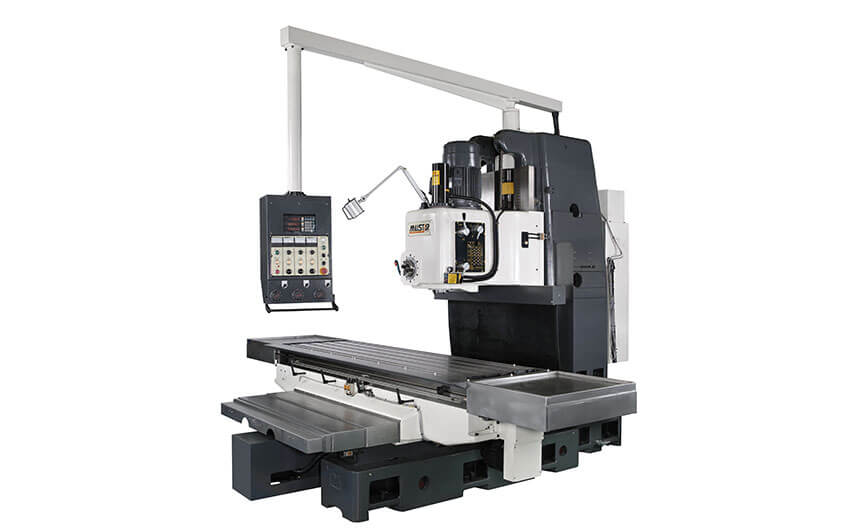

VH780 PC/CNC
- The bed, column, saddle and table are manufactured from high quality Meehanite cast iron, stress relieved for high stability.
- All slideways are hardened, precision ground, then coated with Turcite-B for maximum wear resistance.
- The X, Y axes are protected by stainless steel telescopic covers.
- The X, Y axis drive employs high precision lead screws, combined with double nuts, ensuring high accuracy of feed.
- The spindle runs on precise angular contact bearings.
- The spindle is precision manufactured from SCM21 alloy steel, heat treated and precision ground.
- All gears in milling head are hardened and precision ground for quiet running.
- The X-axis feed is driven by a high torque servo motor, providing variable feed speed.
- The powerful spindle motor gives a high chip removal rate.
- Choice of Fanuc or Mitsubishi CNC controller.
- All models can be converted into CNC controlled system.
| Model |
VH780 PC/CNC |
|
|---|---|---|
| Table | Table size | 2600 X 700mm |
| X/Y/Z 3 axes travel | 2000 X 1200 X 1000mm | |
| T-slot(size x number x distance | 20 X 5 X 125 | |
| 3 axes rapid feede rate | 30~2800(30~6000 PC-Based) | |
| 3 axes cutting feede rate | 2800(30~6000 PC-Based) | |
| Cutting Range Reference | Cutting length | 2000 |
| Cutting width | 750 | |
| Cutting height | 750 | |
| Loading weight | 3000 | |
| Cutting Range Reference | Spindle speed(60HZ) | 45-1500 rpm 18 Steps |
| Spindle taper | NT50 | |
| Spindle nose to table surface distance | 0-810 | |
| Spindle center to slide way surface distance | 780 | |
| Quill feedrate | NA | |
| Turret head swivel angle | NA | |
| Quill travel | NA | |
| horizontal spindle | Spindle speed(60HZ) | 45-1500 rpm 18 Steps |
| Spindle taper | NT50 | |
| Spindle center to table surface distance | 0-1000 | |
| Spindle nose to table edge distance | 400 | |
| Motor | Spindle motor | 15HP X 4P AC |
| X axis feeding motor | 3KW | |
| Y axis feeding motor | 3KW | |
| Z axis feeding motor | 3KW | |
| Dimensions | Net weight | 13500kg |
| Gross weight | 15000kg (20”FR) | |
| Floor plan(L X W X H) | 5880 X 4450 X 3180 | |
| Bed Type Milling CNC/PC-Based Standard Accessories: | Bed Type Milling CNC/PC-Based Optional Accessories: |
| 1. Syntec PC-based controller | 1. Mitsubishi or Fanuc controller |
| 2. 3 axes ball screw | 2. Magnetic chuck |
| 3. Coolant tray&chip guard | 3. 4th axis rotary table(Manual) |
| 4. Vertical air power draw bar | 4. Half cover for work table |
| 5. Horizontal air power draw bar | 5. 3 axes D.R.O(Fagor brand) |
| 6. Auto lubrication system | 6. CE Norm |
| 7. Cooling system | |
| 8. Telescopic cover | |
| 9. Leveling pad | |
| 10. Leveling screws | |
| 11. Working condition light | |
| 12. RS232 interface | |
| 13. Transformer(Export only) |
