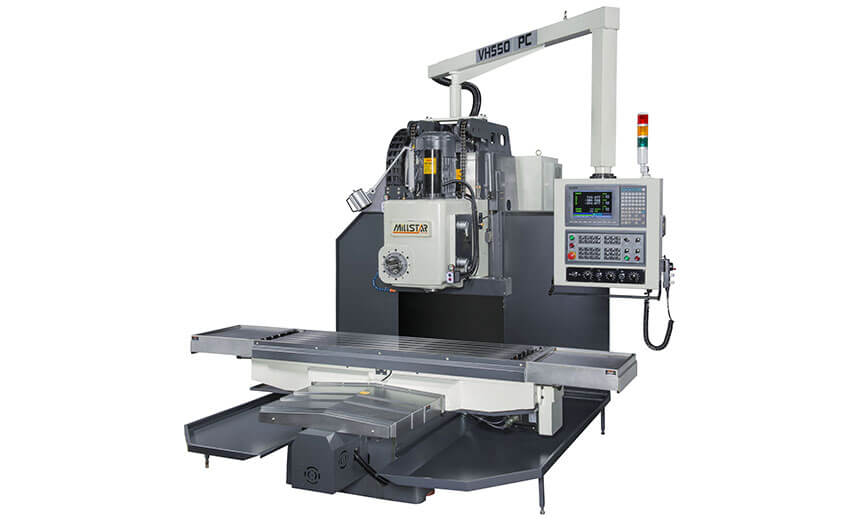

VH550 CNC
- VH550 CNC bed type milling machine's bed, column, saddle and table are manufactured from high-quality methane cast iron, stress relieved for high stability.
- All slideways are hardened, precision ground, then coated with Turcite-B for maximum wear resistance.
- The X, Y axes are protected by stainless steel telescopic covers.
- The X, Y axis drive employs high precision lead screws, combined with double nuts, ensuring high accuracy of feed.
- The spindle runs on precise angular contact bearings.
- The spindle is precision manufactured from SCM21 alloy steel, heat treated and precision ground.
- All gears in milling head are hardened and precision ground for quiet running.
- The X-axis feed is driven by a high torque servo motor, providing variable feed speed.
- The powerful spindle motor gives a high chip removal rate.
- Choice of Fanuc or Mitsubishi CNC controller.
- All models of bed type milling machines can be converted into CNC controlled system.
Model | VH550 CNC Bed Type Milling Machine | |
---|---|---|
Table | Table size | 1900 X 500mm |
X/Y/Z 3 axes travel | 1500 X 900 X 790mm | |
T-slot(size x number x distance | 18 X 5 X 80 | |
3 axes rapid feede rate | 30~2800(30~6000 PC-Based) | |
3 axes cutting feede rate | 2800(30~600 PC-Based) | |
Cutting Range Reference | Cutting length | 1300 |
Cutting width | 520 | |
Cutting height | 520 | |
Loading weight | 1500 | |
Cutting Range Reference | Spindle speed(60HZ) | 45-1500 rpm 18 Steps |
Spindle taper | NT50 | |
Spindle nose to table surface distance | 0-603 | |
Spindle center to slide way surface distance | 550 | |
Quill feedrate | NA | |
Turret head swivel angle | NA | |
Quill travel | NA | |
horizontal spindle | Spindle speed(60HZ) | 45-1500 rpm 18 Steps |
Spindle taper | NT50 | |
Spindle center to table surface distance | 0-790 | |
Spindle nose to table edge distance | 280 | |
Motor | Spindle motor | 10HP X 4P AC |
X axis feeding motor | 2.5KW | |
Y axis feeding motor | 2.5KW | |
Z axis feeding motor | 2.5KW | |
Dimensions | Net weight | 6000kg |
Gross weight | 7000kg (40”HQ) | |
Floor plan(L X W X H) | 4500 X 3780 X 2980 |
Standard Accessories: | Optional Accessories: |
1. Automatic lubricating system | 1. Ball screw(X,Y) |
2. Cooling system | 2. Air power draw bar(Vertical and horizontal) |
3. Tool box | 3. 4th axis rotary table(Manual) (1o,5o,15o) |
4. Spindle draw bar screw | 4. Electric magnet(400X800,500X1000) |
5. Leveling pads | 5. Spindle braking equipment(Vertical and horizontal spindle) |
6. Leveling screws | 6. Vice(16”,20”) |
7. Air operated Y,Z axis lock(480,550,650,780) | 7. End milling collet chuck set |
8. Transformer(Export only) | 8. Universal clamping set |
9. Coolant tray | |
10. Chip guard | |
11. Half cover for work table | |
12. 3 axes D.R.O(Fagor brand) | |
13. CE norm |
