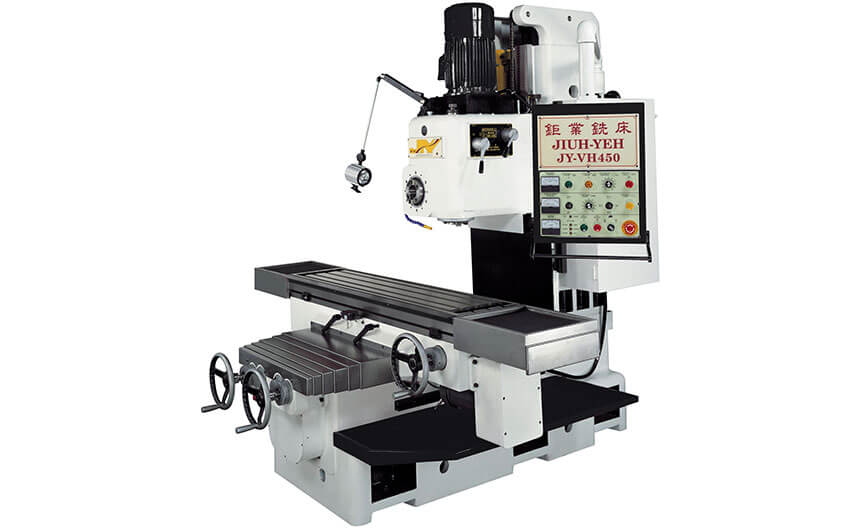

VH450
- The bed, column, saddle and table are manufactured from high quality Meehanite cast iron, stress relieved for high stability.
- All slideways are hardened, precision ground, then coated with Turcite-B for maximum wear resistance.
- The X, Y axes are protected by stainless steel telescopic covers.
- The X, Y axis drive employs high precision lead screws, combined with double nuts, ensuring high accuracy of feed.
- The spindle runs on precise angular contact bearings.
- The spindle is precision manufactured from SCM21 alloy steel, heat treated and precision ground.
- All gears in milling head are hardened and precision ground for quiet running.
- The X-axis feed is driven by a high torque servo motor, providing variable feed speed.
- The powerful spindle motor gives a high chip removal rate.
- Choice of Fanuc or Mitsubishi CNC controller.
- All models can be converted into CNC controlled system.
| Model | VH450 | |
|---|---|---|
| Table | Table size | 1500 X 450mm |
| X/Y/Z 3 axes travel | 1100/720/780mm | |
| T-slot(size x number x distance | 18 X 5 X 80 | |
| 3 axes rapid feede rate | 25~1500(30~6000 PC-Based) | |
| 3 axes cutting feede rate | 1500(30~6000 PC-Based) | |
| Cutting Range Reference | Cutting length | 1100 |
| Cutting width | 420 | |
| Cutting height | 500 | |
| Loading weight | 1000 | |
| Cutting Range Reference | Spindle speed(60HZ) | 45-1500 rpm variable |
| Spindle taper | NT50 | |
| Spindle nose to table surface distance | 0-617 | |
| Spindle center to slide way surface distance | 450 | |
| Quill feedrate | NA | |
| Turret head swivel angle | NA | |
| Quill travel | NA | |
| horizontal spindle | Spindle speed(60HZ) | 45-1500 rpm variable |
| Spindle taper | NT50 | |
| Spindle center to table surface distance | 0-780 | |
| Spindle nose to table edge distance | 190 | |
| Motor | Spindle motor | 10HP X 4P AC |
| X axis feeding motor | 0.75KW | |
| Y axis feeding motor | 0.75KW | |
| Z axis feeding motor | 0.75KW | |
| Dimensions | Net weight | 4200kg |
| Gross weight | 5000kg (40”HQ) | |
| Floor plan(L X W X H) | 3500 X 3100 X 2750 | |
| Standard Accessories: | Optional Accessories: |
| 1. Automatic lubricating system | 1. Ball screw(X,Y) |
| 2. Cooling system | 2. Air power draw bar(Vertical and horizontal) |
| 3. Tool box | 3. 4th axis rotary table(Manual) (1o,5o,15o) |
| 4. Spindle draw bar screw | 4. Electric magnet(400X800,500X1000) |
| 5. Leveling pads | 5. Spindle braking equipment(Vertical and horizontal spindle) |
| 6. Leveling screws | 6. Vice(16”,20”) |
| 7. Air operated Y,Z axis lock(480,550,650,780) | 7. End milling collet chuck set |
| 8. Transformer(Export only) | 8. Universal clamping set |
| 9. Coolant tray | |
| 10. Chip guard | |
| 11. Half cover for work table | |
| 12. 3 axes D.R.O(Fagor brand) | |
| 13. CE norm |
