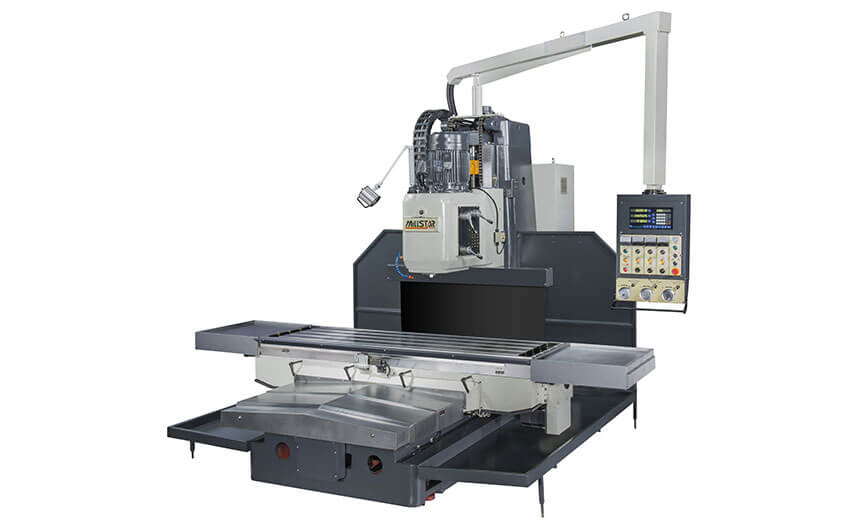

V850
V850 Bed type CNC vertical milling machine specification, please see the table below. If you have any questions about CNC vertical milling machine specifications
| Model | V850 | |
|---|---|---|
| Table | Table size | 2200 X 600mm |
| X/Y/Z 3 axes travel | 1700/800/600mm | |
| T-slot(size x number x distance | 20 X 5 X 125 | |
| 3 axes rapid feede rate | 30~2800(30~6000 PC-Based) | |
| 3 axes cutting feede rate | 2800(30~6000 PC-Based) | |
| Cutting Range Reference | Cutting length | 2800 |
| Cutting width | 780 | |
| Cutting height | 700 | |
| Loading weight | 2000 | |
| Cutting Range Reference | Spindle speed(60HZ) | 45-1500 rpm 18 Step |
| Spindle taper | NT50 | |
| Spindle nose to table surface distance | 150-750 | |
| Spindle center to slide way surface distance | 850 | |
| Quill feedrate | NA | |
| Turret head swivel angle | NA | |
| Quill travel | NA | |
| horizontal spindle | Spindle speed(60HZ) | NA |
| Spindle taper | NA | |
| Spindle center to table surface distance | NA | |
| Spindle nose to table edge distance | NA | |
| Motor | Spindle motor | 15HP X 4P AC |
| X axis feeding motor | 3 KW | |
| Y axis feeding motor | 3 KW | |
| Z axis feeding motor | 3 KW | |
| Dimensions | Net weight | 7500kg |
| Gross weight | 8500kg (40”HQ) | |
| Floor plan(L X W X H) | 5180 X 4080 X 3180 | |
| Standard Accessories: | Optional Accessories: |
| 1. Automatic lubricating system | 1. Ball screw(X,Y) |
| 2. Cooling system | 2. Air power draw bar(Vertical and horizontal) |
| 3. Tool box | 3. 4th axis rotary table(Manual) (1o,5o,15o) |
| 4. Spindle draw bar screw | 4. Electric magnet(400X800,500X1000) |
| 5. Leveling pads | 5. Spindle braking equipment(Vertical and horizontal spindle) |
| 6. Leveling screws | 6. Vice(16”,20”) |
| 7. Air operated Y,Z axis lock(480,550,650,780) | 7. End milling collet chuck set |
| 8. Transformer(Export only) | 8. Universal clamping set |
| 9. Coolant tray | |
| 10. Chip guard | |
| 11. Half cover for work table | |
| 12. 3 axes D.R.O(Fagor brand) | |
| 13. CE norm |
