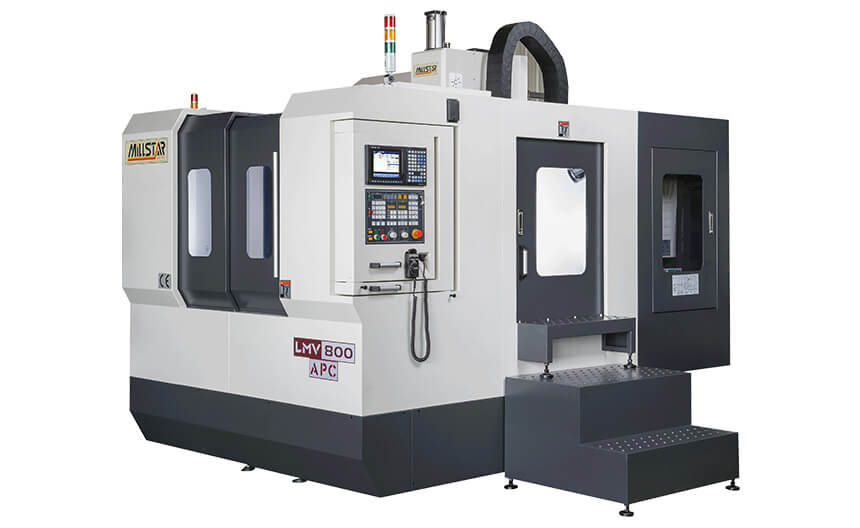

LMV800APC
| Model | LMV800APC | |
|---|---|---|
| Table | Work Table | 800 X 500 mm X 2pcs |
| T-slot | 100 X 18 mm X 5T | |
| Max. Loading | 400 kg | |
| Travel | Three Axes Travel | 800 X 460 X 450 mm |
| Spindle Nose to Table Surface | 150~600 mm | |
| Spindle Center to Column Slide Ways | 490 mm | |
| Spindle | Spindle Taper | BT40 |
| Spindle Diameter | Φ70 mm | |
| Spindle Speed | 10000 rpm | |
| Feedrate | 3 axes Slide Ways | Linear Way |
| 3 axes Rapid Feedrate | 30/30/30 m/min | |
| 3 axes Cutting Feedrate | 10/10/10 m/min | |
| ATC | Tool Magazine type | Arm |
| Tool Selection | Bi-direction shortest path | |
| Max. Tool Diameter X Length | Φ80 X 250 mm | |
| Max. Tool Weight | 7 kg | |
| Tool Shank | BT40 | |
| ATC Capacity | 24T | |
| Motor | Spindle Motor(cont./30 min) | 7.5/11 kw |
| X/Y/Z axis Servomotor | X,Y:HF224/Z:HF204B | |
| X/Y/Z axis Ball Screw | Φ32 X Pitch 12 | |
| Coolant Pump | 660W | |
| Miscellaneous | External Dimensions(L X W X H) | 2230X 3282 X 2707 mm |
| N.W/G.W.(approx..) | 5000/5500 kg | |
| Splash Guard | Fully Splash guard | |
| Coolant Tank Capacity | 270L | |
| Standard Accessories: | Optional Accessories: |
| 1. Mitsubishi M80 controller | 1. Fanuc/Mitsubishi M800/Siemens/Heidenhain/Fagor |
| 2. 8.4” color LCD | 2. 10.4” color LCD |
| 3. Leveling kits and blocks | 3. Spindle speed 10000/12000/15000 rpm(BT40),Direct Drive(DDS) |
| 4. Tool box with tools | 4. Spindle speed 6000/8000 rpm(BT50) |
| 5. Spindle speed 10000 rpm | 5. Spindle oil cooler |
| 6. Spindle air blow system | 6. ZF gear box(BT40/BT50) |
| 7. Coolant system | 7. 4th axis interface (not include motor & drive) |
| 8. Auto power off | 8. CNC rotary table with drive,motor |
| 9. Heat exchanger | 9. Coolant through spindle 20/30/50 BAR(CTS) |
| 10. Auto lubrication system | 10. Air conditioner for electric cabinet |
| 11. 24 tools arm type ATC | 11. 24 tools arm type ATC (BT40/BT50) |
| 12. Rigid tapping | 12. 32 tools chain type ATC (BT50) |
| 13. Screw type chip conveyor with cart | 13. Steelbelt type/Scraper type chip conveyor with cart |
| 14. M code air blasting | 14. Chip flushing system |
| 15. RS232 interface | 15. CE norm |
| 16. Fully splash cover | 16. Oil skimmer |
| 17. Quartz working light | 17. Automatic tool length measuring device |
| 18. Transformer(Export only) | 18. Automatic work piece measuring device |
