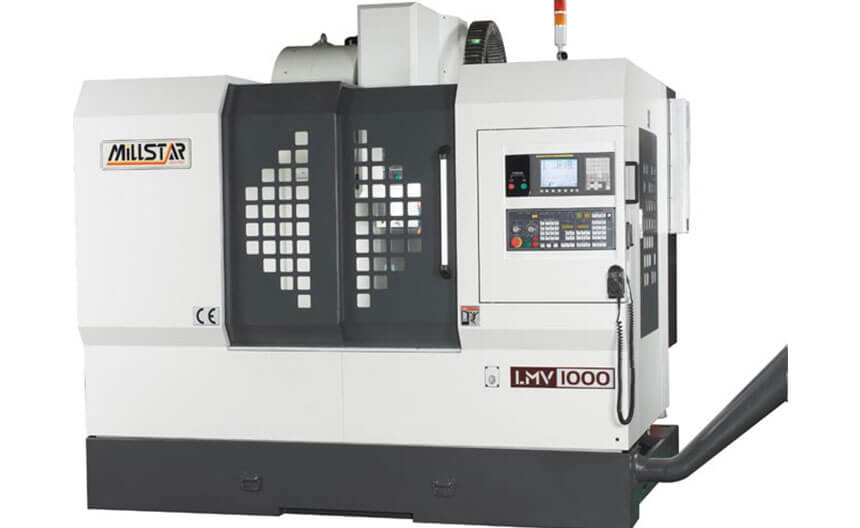

High Speed LMV series (4 Linear Guide Way) Vertical Machining Center

(BT40) X1000 / Y600 / Z620

  • Finite element analysis
  • The extra-wide and extremely stable base has 4 Linear ways providing solid support for the entire machine.
  • X, y axis with 4 and 6 blocks on Linear Guideway (850/1000). X, Y axis with 6 and 8 blocks on Linear Guideway (1200/1400).
  • High speed and precision ball screw.
  • High rigidity spindle.
  • Stability ATC system. (Auto tool change)

Inquiry

Model LMV1000
Table Work Table 1200 X 550 mm
T-slot 100 X 18 mm X 5T
Max. Loading 1000 kg
Travel Three Axes Travel 1000 X 600 X 620 mm
Spindle Nose to Table Surface 130~750 mm
Spindle Center to Column Slide Ways 620 mm
Spindle Spindle Taper BT40
Spindle Diameter Φ70 mm
Spindle Speed 8000 rpm
Feedrate 3 axes Slide Ways Linear Way
3 axes Rapid Feedrate 30/30/30 m/min
3 axes Cutting Feedrate 10/10/10 m/min
ATC Tool Magazine type Armless
Tool Selection Bi-direction shortest path
Max. Tool Diameter X Length Φ100 X 300 mm
Max. Tool Weight 7 kg
Tool Shank BT40
ATC Capacity 20T
Motor Spindle Motor(cont./30 min) 7.5/11 kw
X/Y/Z axis Servomotor HF204
X/Y/Z axis Ball Screw Φ40 X Pitch 10
Coolant Pump 660W
Miscellaneous External Dimensions(L X W X H) 2810 X 2238 X 2771 mm
N.W/G.W.(approx..) 6200/6900 kg
Splash Guard Fully Splash guard
Coolant Tank Capacity 250L
Standard Accessories: Optional Accessories:
1. Mitsubishi M80 controller 1. Fanuc/Mitsubishi M800/Siemens/Heidenhain/Fagor
2. 8.4” color LCD 2. 10.4” color LCD
3. Leveling kits and blocks 3. Spindle speed 10000/12000/15000 rpm(BT40),Direct Drive(DDS)
4. Tool box with tools 4. Spindle speed 6000/8000 rpm(BT50)
5. Spindle speed 8000 rpm,BT-40(LMV-850~LMV-1400) 5. Spindle oil cooler(LMV510/710/800 std.)
6. Spindle speed 10000 rpm, LMV-510/710/800 6. ZF gear box(BT40/BT50)
7. Spindle speed 4500 rpm,Belt drive, BT-50,LMV-1200/LMV-1400 7. Japan HAMADA Gear head(BT50),LMV-1200/LMV-1400
8. Spindle air blow system 8. 4th axis interface (not include motor & drive)
9. Coolant system 9. CNC rotary table with drive,motor
10. Auto power off 10. Coolant through spindle 20/30/50 BAR(CTS)
11. Heat exchanger 11. Air conditioner for electric cabinet
12. Auto lubrication system 12. 24 tools arm type ATC (BT40/BT50)
13. 20 tools armless type ATC 13. 32 tools chain type ATC (BT50)
14. Rigid tapping 14. Steelbelt type/Scraper type chip conveyor with cart
15. Screw type chip conveyor with cart 15. Chip flushing system
16. M code air blasting 16. CE norm
17. RS232 interface 17. Oil skimmer
18. Fully splash cover 18. Automatic tool length measuring device
19. Quartz working light 19. Automatic work piece measuring device
20. Transformer(Export only)
