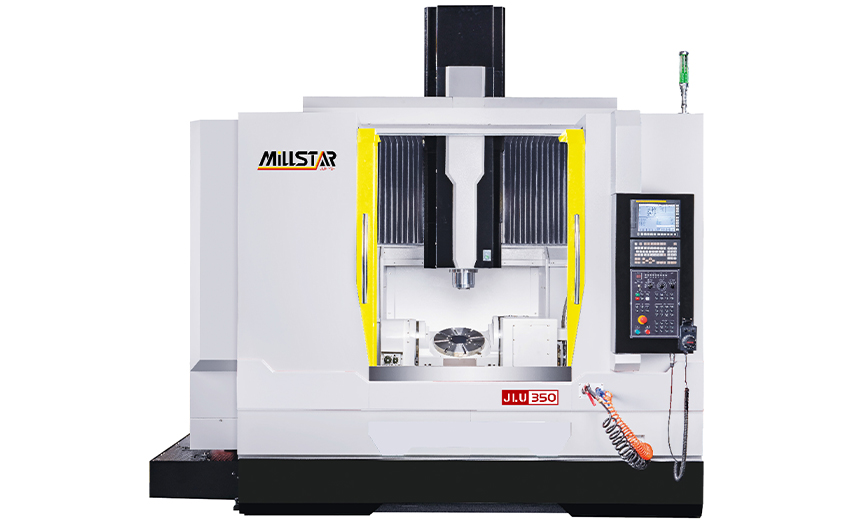

JLU-350
- Compact construction with high stability.
- Heavy-duty roller type linear guide ways on X / Y / Z axes.
- Equipped with a high-precision tilting rotary table (A / C axis).
- 5 axis simultaneous machining allows for machining complex parts with high efficiency and high accuracy.
- 12,000 rpm direct drive spindle features low vibration, low noise, and low thermal growth.
- BT-40 spindle taper.
- Rapid traverse rates on X / Y / Z axes 36 m/min.
- Equipped with a 24-tool magazine.
| Model | JLU-350 | |
|---|---|---|
| Travel | X axis Travel | 1020 mm |
| Y axis Travel | 610 mm | |
| Z axis Travel | 510 mm | |
| Distance from Spindle Nose to Table | 100 ~610 mm | |
| Table | Table Diameter | 350 mm |
| Max. Table Load | 200 kg | |
| T-slot Size (No×Size×Pitch) | 8×12×45° mm | |
| Sindle | Spindle Speed | 12,000 rmp |
| Drive Method | Direct Drive | |
| Spindle Taper | #40 | |
| A axis | TILTING AXIS [A axis] | |
| Tilting Angle | -120°~+30° | |
| Max. Speed | 40 rmp | |
| Minimum Split Angle | 0.001° | |
| C axis Rotary Table | C axis | |
| C axis Rotating Angle | 360° | |
| Max. Speed | 33.3 rmp | |
| Minimum Split Angle | 0.001° | |
| ATC | ||
| TOOL MAGZING LOADING | ||
| Tool Shank | #40 | |
| Tool Magzine Loading Capacity | 24 pcs | |
| Rapid Feed Rates (X/Y/Z) | 36/36/36 m/min | |
| Cutting Feed Rate | 1~20,000 mm/min | |
| Standard Accessories: | Optional Accessories: |
| 1. Lubrication system | 1. Linear scale |
| 2. Fully enclosed splashguard | 2. Tool length measurement |
| 3. Manual roof splashguard | 3. Workpiece measurement |
| 4. Spindle / AC axis coolant system | 4. Oil mist collector |
| 5. Chip cart | 5. Auto front door |
| 6. Chip conveyor | 6. Auto roof splashguard |
| 7. Air conditioner for electrical cabinet | 7. CE certified |
| 8. LED working lamp | 8. Coolant through spindle (CTS) |
| 9. USB | 9. Spindle thermal displacement compensation |
| 10. Ethernet | 10. Whole structure thermal displacement compensation |
| 11. Air gun | 11. Spindle ring spray |
| 12. Water gun | 12. Oil skimmer |
| 13. Spindle ring spray, Spindle outside air spray 2 output | 13. RS-232 interface |
